Stormwater Project in Coalfalls, QLD

Recently, Citi Industries installed a stormwater management system, including a sequence of underground infrastructure projects in Coalfalls, Queensland. This Stormwater Project in Coalfalls, QLD project commissioned on a do-and-charge basis comprised:

Building a typical concrete headwall and five stormwater pits (Pit 1/1 to Pit 5/1).
Placing 150mm to 225mm diameter stormwater pipes
Excavating and laying pipes up to 1.6 meters below ground.
Gathering gravel for backfilling and pipe bedding

Previously, this project was prone to drainage inefficiencies, and these civil works were vital for allowing efficient water flow and regulation of surface water run-off in the area.

Problems Identified

The Coalfalls site offered a number of difficulties:

Inadequate infrastructure for water drainage causes surface run-off problems
A demand for unique depth and alignment across a range of terrain and vegetation
The complexity of installation resulting from some sections’ subsurface depth above 1.5 meters
Conditions for exact trenching and compaction to prevent pipe alignment or collapse

Furthermore, the lack of a pre-nominated headwall type caused uncertainty, necessitating the team’s professional judgement to choose an appropriate standard headwall.

Solutions Implemented

Citi Industries sent its seasoned team and equipment to handle these problems in order to:

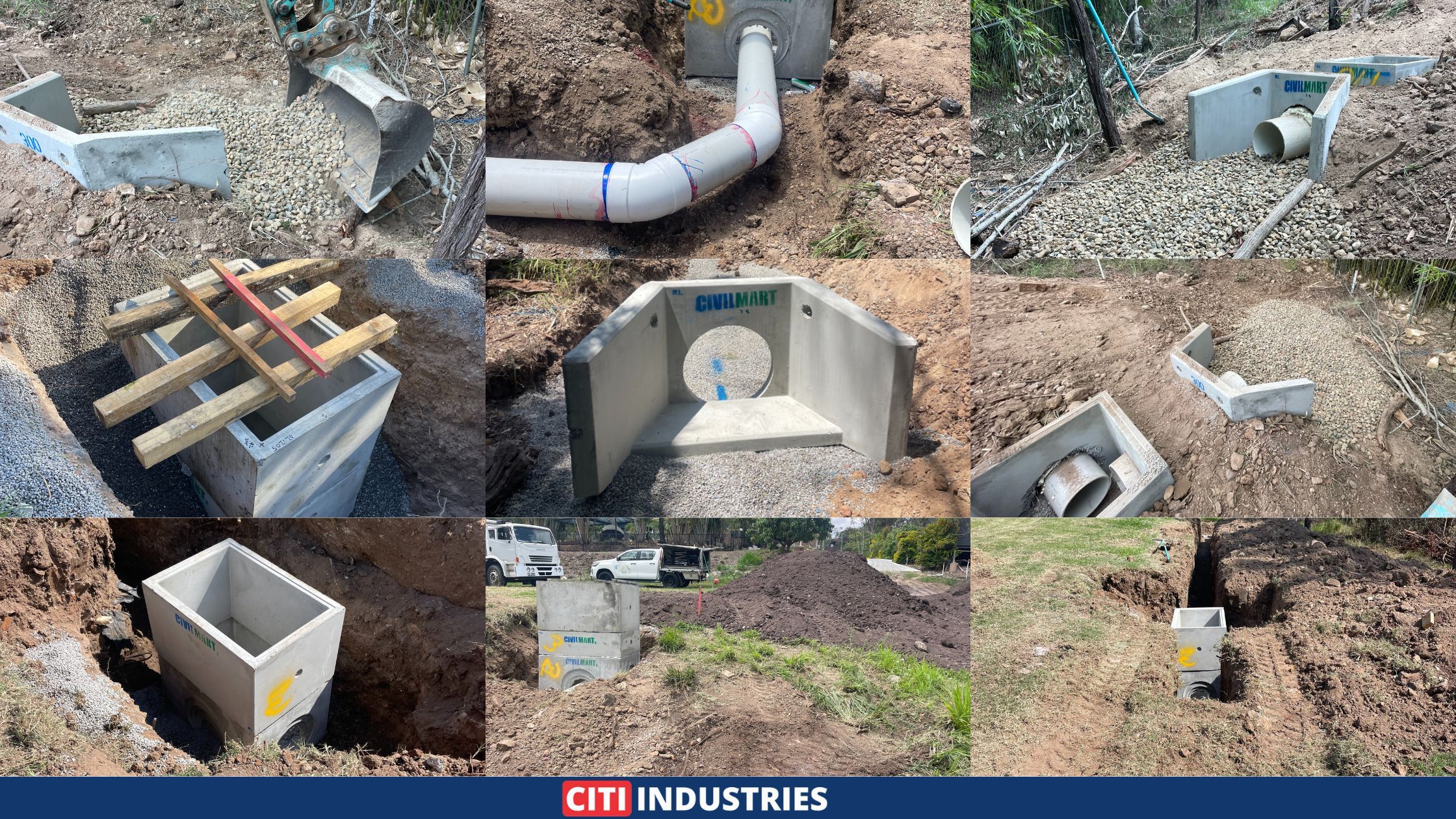

1. Concrete Pits and Headwall Installation

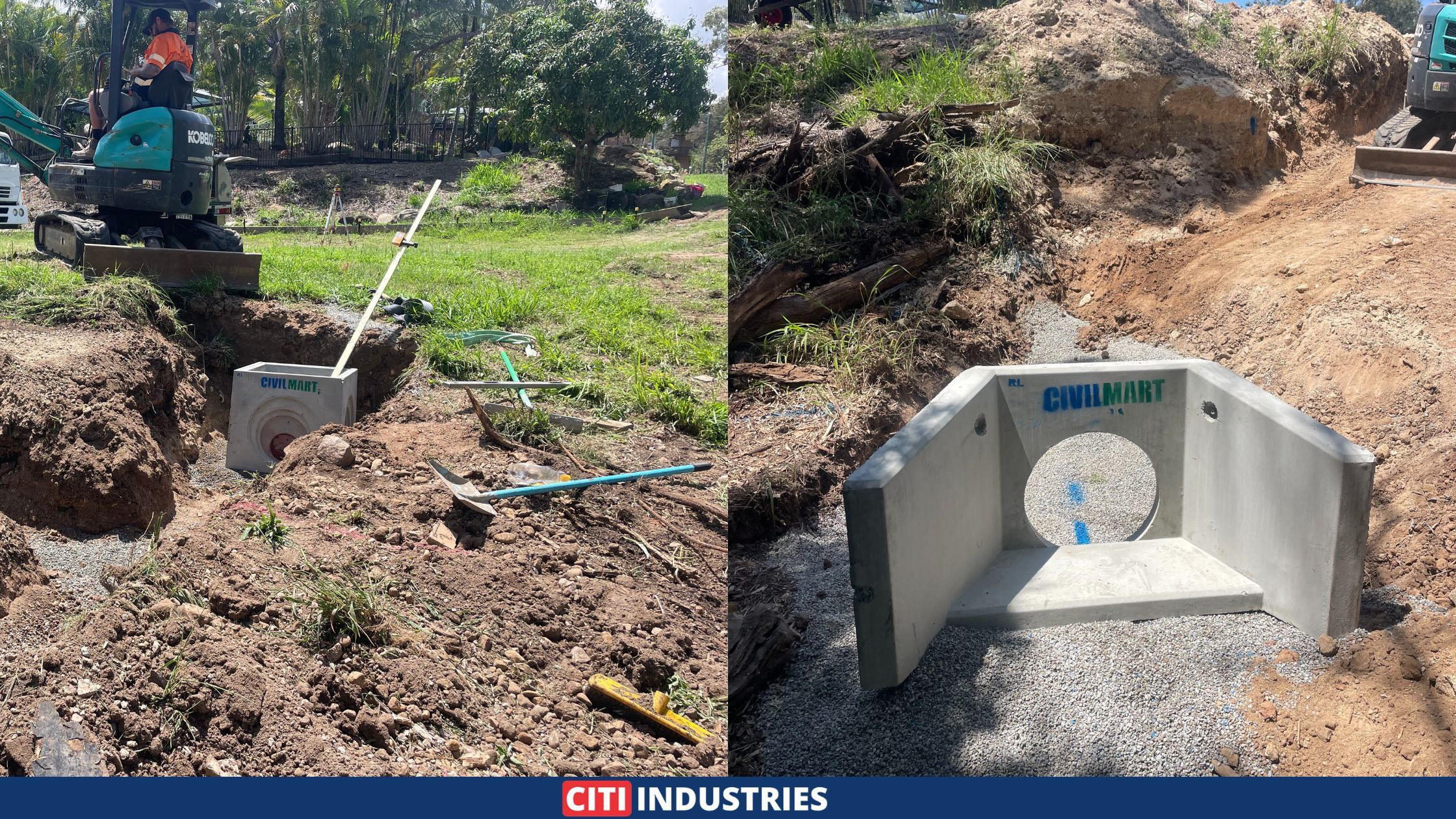

Each of the five stormwater pits was built precisely according to the engineering plans. For strong and efficient outflow, a conventional headwall was chosen and put at the terminal position.

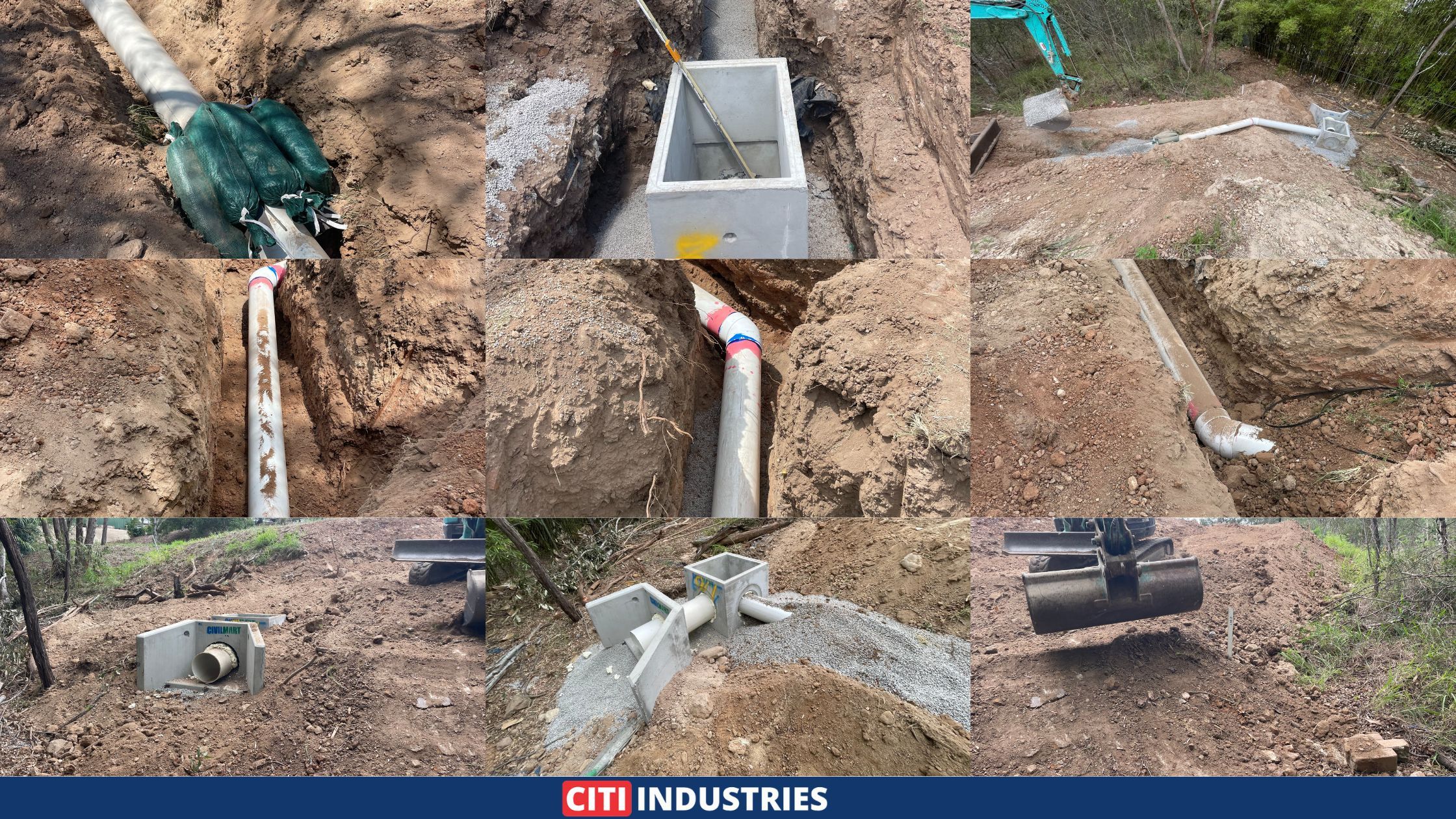

2. Pipe Laying and Bedding

The team carefully graded the site from Pit 1/1 to 2 metres past Pit 4/1 and laid 150mm–225mm diameter stormwater pipes. The team guaranteed ideal slope and pipe jointing to stop future blockages and backflow.

3. Gravel Bedding and Backfill

The pipes were bedded in crushed gravel to guarantee correct load distribution and drainage. Trenches were backfilled and compacted following pipe laying, therefore preserving the integrity of the erected system.

4. Safe Excavation

The team followed rigorous safety procedures during all excavations to prevent trench collapse and safeguard workers on site, placing pipes as deep as 1.6 meters.

Project Outcome

Citi Industries effectively completed the Stormwater Project in Coalfalls, QLD using:

Great structural integrity and water flow effectiveness
The team fits every pit and pipe to specification on grade and aligns them precisely.
A completely stable trench system built with compacted soil and gravel bedding.
A typical headwall combined for reinforced water release

The initiative raised future growth readiness and improved the stormwater run-off infrastructure for the region. There were no recorded technical delays or safety events, therefore proving Citi Industries’ dedication to excellence and safety.
