Not every tenancy fit-out revolves around a kitchen or a wash bay. A retail banking tenancy at an Ipswich shopping centre needed a compact, precise plumbing scope instead. It was a small job, but it still had to be done right inside a busy, working centre.
So the tenant brought in Citi Industries to handle the plumbing fit-out. The brief was tight: concrete works, new sewer drainage and a water point ready for the future.
Project Overview
This shopping centre plumbing fit-out focused on drainage and a capped water connection. Because the tenancy was a bank rather than a food outlet, no trade waste or grease trap was involved. Therefore, the scope stayed lean and targeted.
The team cut and reinstated concrete, laid new sewer drainage and roughed in cold water. They also left a capped valve in the ceiling space, so a future connection won’t need fresh excavation.
Key scope items included:
- Concrete scanning, cutting, removal and replacement within the tenancy
- Reinstatement finished flush to the current shop’s surface level
- New sewer drainage laid to suit the tenancy layout
- Cold water rough-in through the space
- One 20mm valve left capped in the ceiling space for future connection
Challenges
Working inside an operating shopping centre sets the tone for every task. The tenancy sat among trading neighbours, so the works had to stay clean and contained. As a result, concrete cutting and reinstatement needed a finish flush with the existing shop floor.
Precision mattered more than volume on this job. Scanning the slab first revealed what ran beneath, which guided a safe cut because hidden services can sit below any centre floor, this step protected both the building and the schedule.
The last part of the job was setting things up for later. Rather than connect the water immediately, the brief called for a capped point ready to go. This foresight followed Queensland regulated plumbing work requirements while leaving room for later works.
Key constraints on this project:
- Work sat inside an operating centre, so it had to stay clean and contained
- Concrete reinstatement had to finish flush with the current shop surface
- Slab scanning was needed before any cutting to protect buried services
- A capped water valve had to be left accessible in the ceiling space
- All plumbing had to meet standards despite the compact scope
Solutions
Citi Industries delivered the scope in a clean, ordered sequence. Each stage below suited a small job in a live centre.

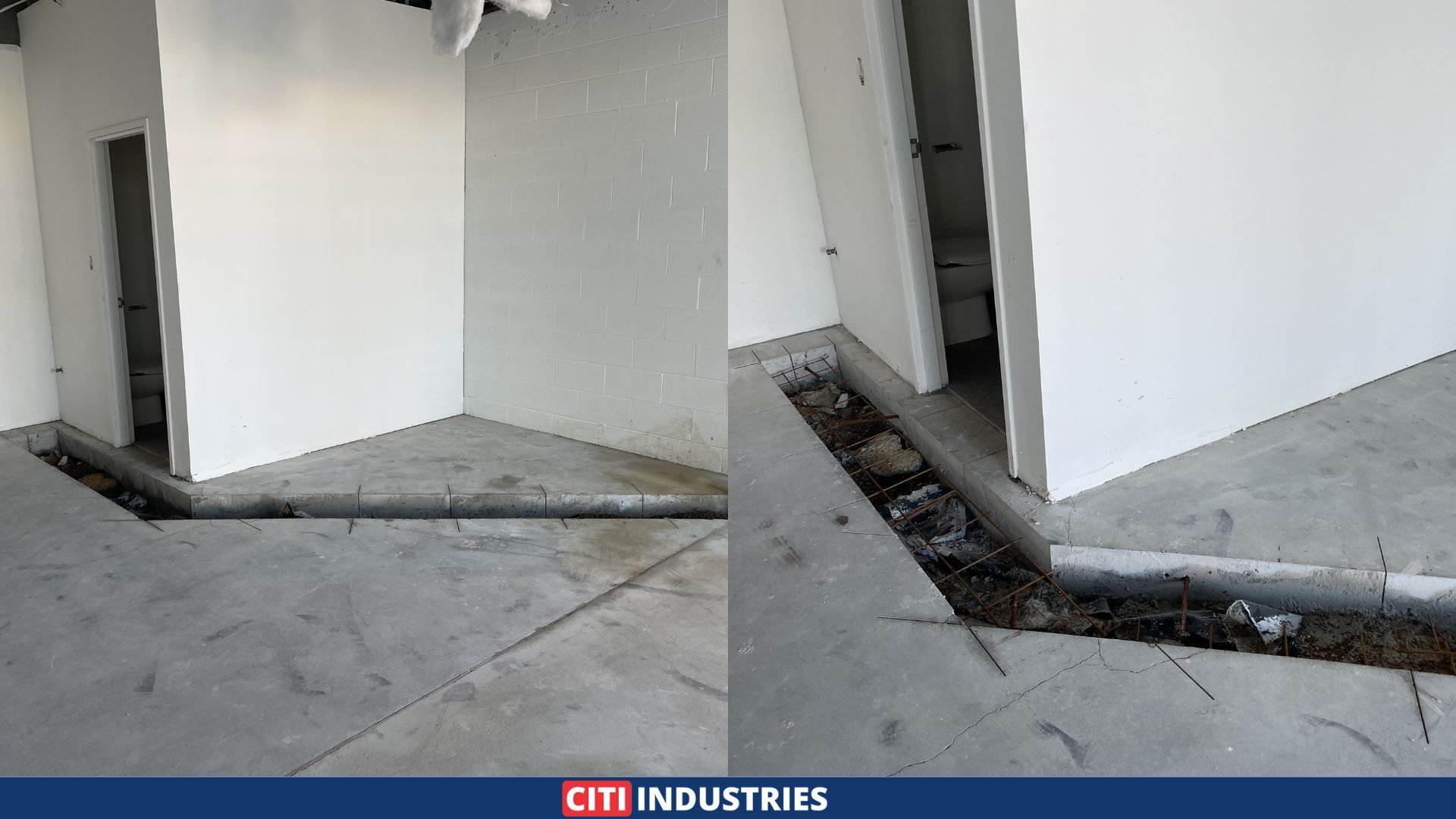

Scanning and Concrete Works
To begin, the crew scanned the slab to map any services below it. With the ground confirmed, they cut and removed the concrete where the new drainage would run. This careful start kept the cut safe in a shared building.
Our commercial plumbing services always open with scanning on centre fit-outs. Guesswork near a live slab simply is not worth the risk.

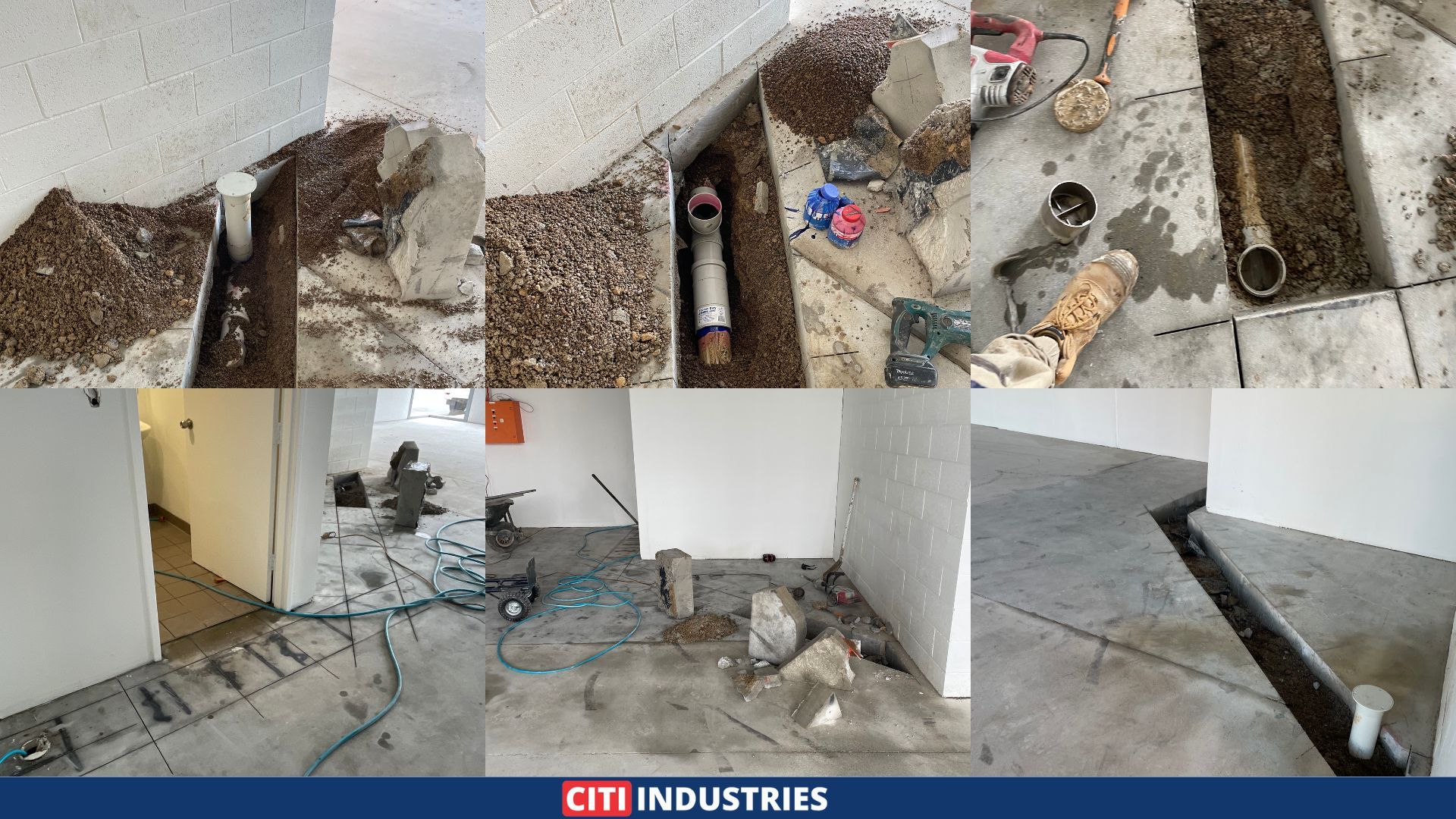

Laying the New Sewer Drainage
Next, the team laid the new sewer drainage to suit the tenancy plan. Correct fall was the priority, since drainage only works when gravity carries the flow away. Consequently, the crew set each length to a clean, consistent gradient.
Once the drainage was in, they reinstated the concrete flush to the shop’s surface level. That finish left no trip hazard and no sign of the works.
Cold Water Rough-in and Future Connection
Finally, the crew roughed in the cold water through the space. Instead of making a live connection, they left one 20mm valve capped in the ceiling space. This capped point lets a future fit-out connect water without reopening finished work.
Leaving that provision is a small step with a big payoff for the next stage. Our industrial drainage solutions often build in this kind of foresight.
Final Outcome
A compact brief became a clean, future-ready plumbing fit-out. Citi Industries completed the Ipswich works in December 2025 without disrupting the centre around it. As a result, the tenancy held new drainage and a water point awaiting its next stage.
- Concrete cut and reinstated flush to the current shop surface
- New sewer drainage laid to a correct, consistent fall
- Cold water roughed in through the space
- A 20mm valve left capped in the ceiling for easy future connection
The work met plumbing compliance and standards Australia, the tenancy held infrastructure ready for whatever follows. The flush finish left the shop floor safe and tidy.
Final Thoughts
Small plumbing scopes still reward careful planning. A capped valve or a flush reinstatement seems minor, yet each saves cost and disruption later. However, that value only appears when the work is done to standard the first time.
Citi Industries treats compact fit-outs with the same rigour as major builds. Because of that, tenants avoid rework when the next stage arrives. The team scans first, lays the drainage to the right fall and leaves clean provisions for the future.
